GT40 | Clad Alignment

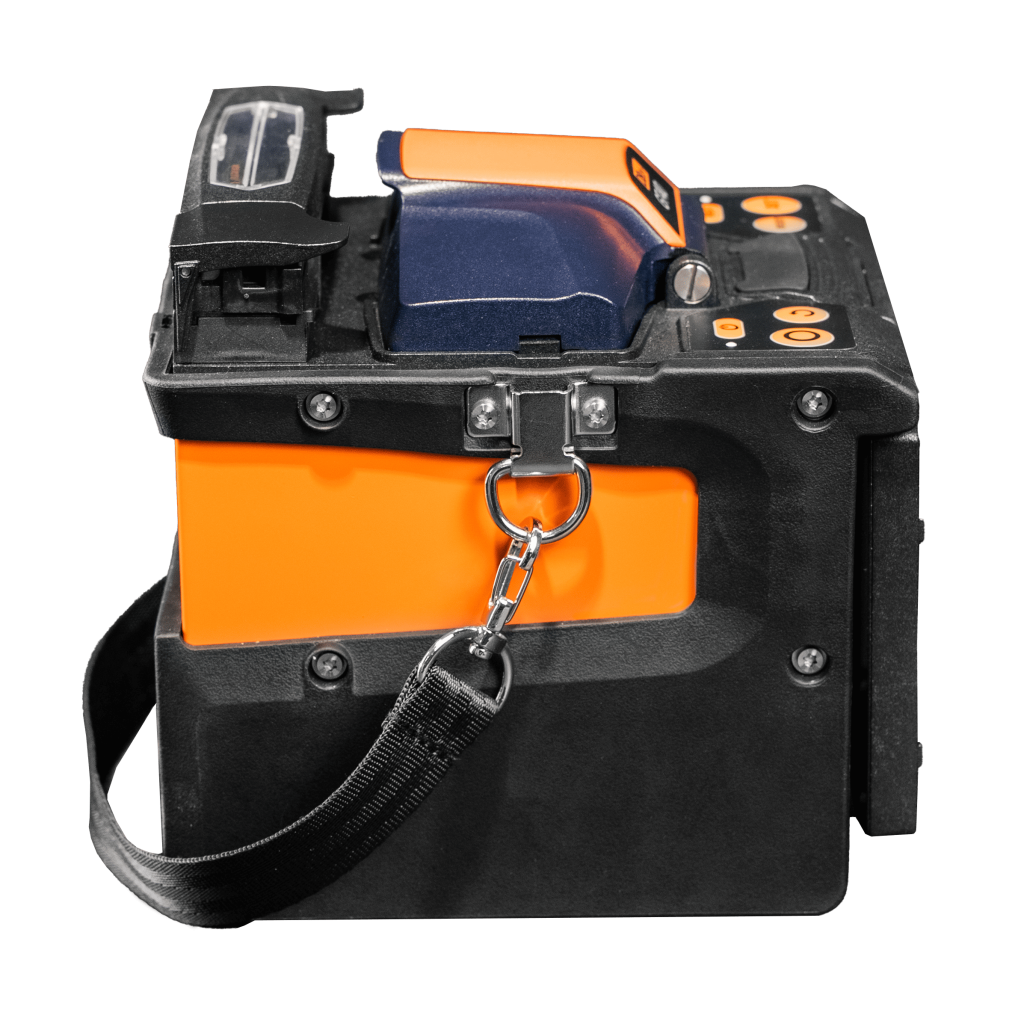

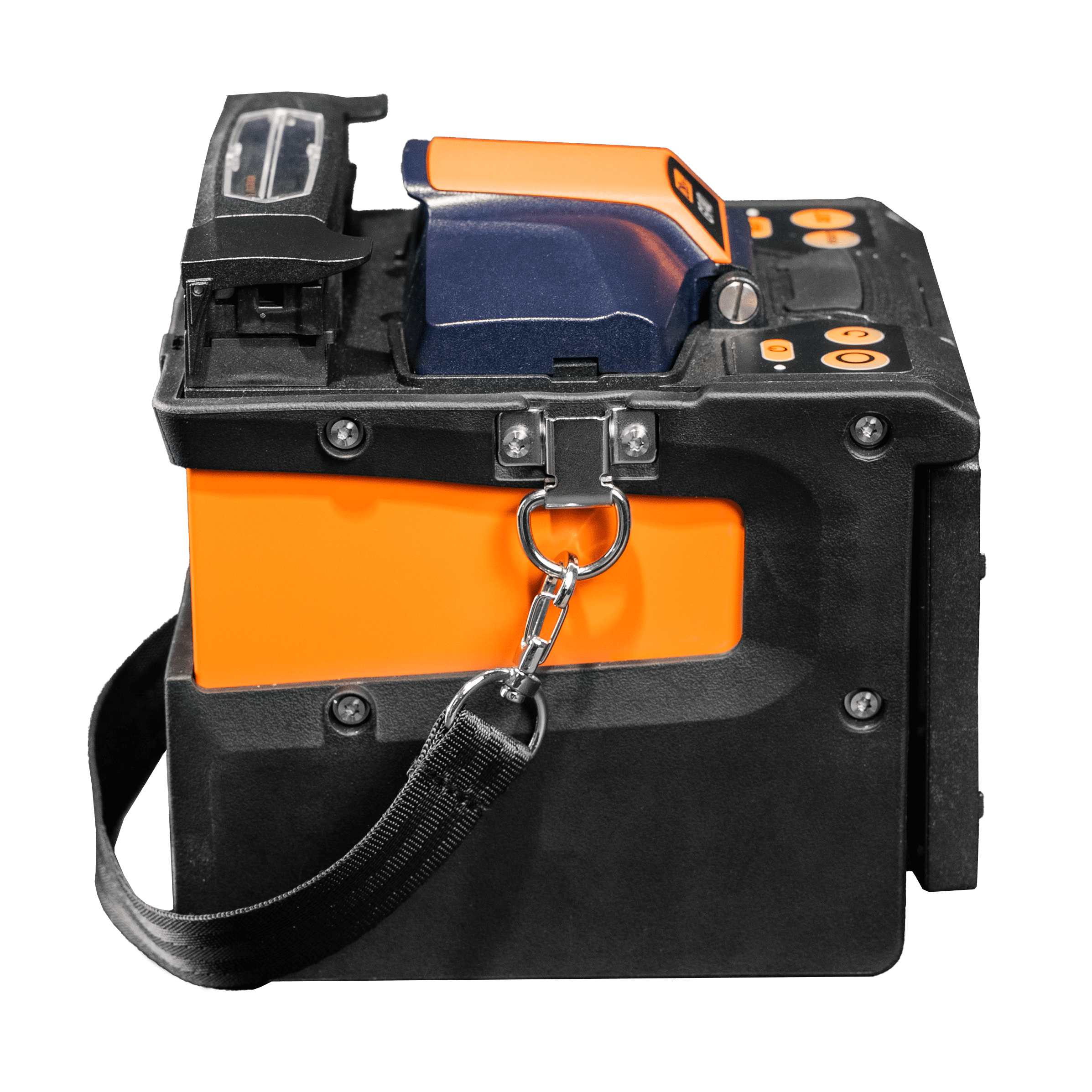

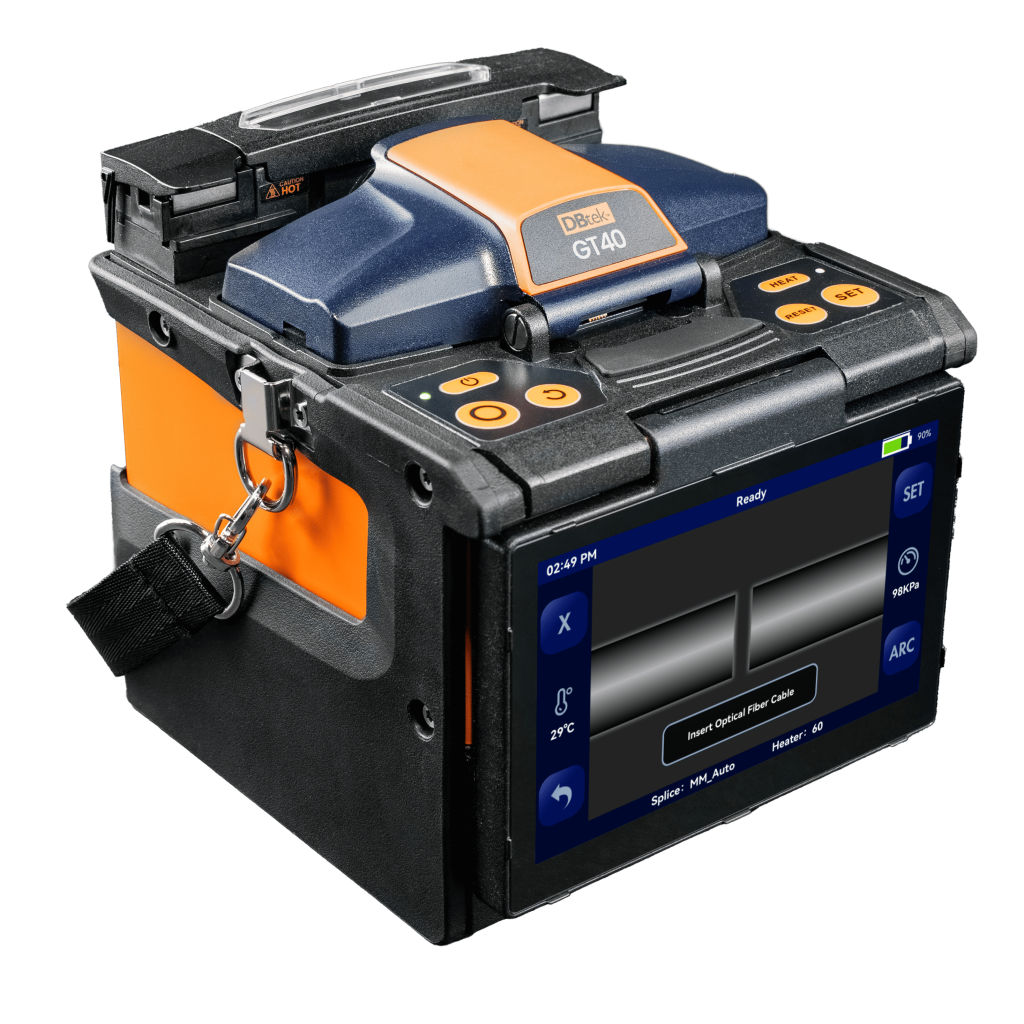

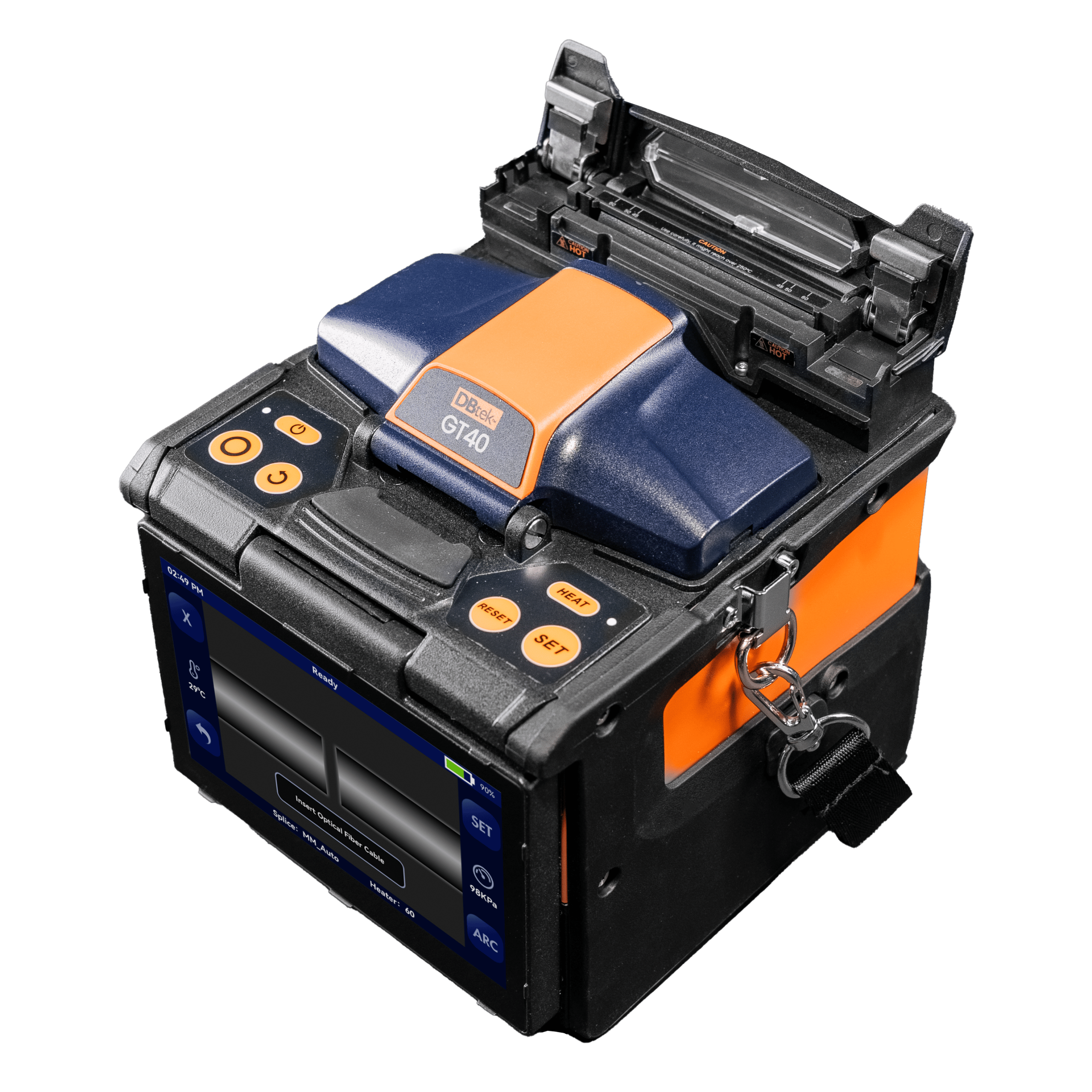

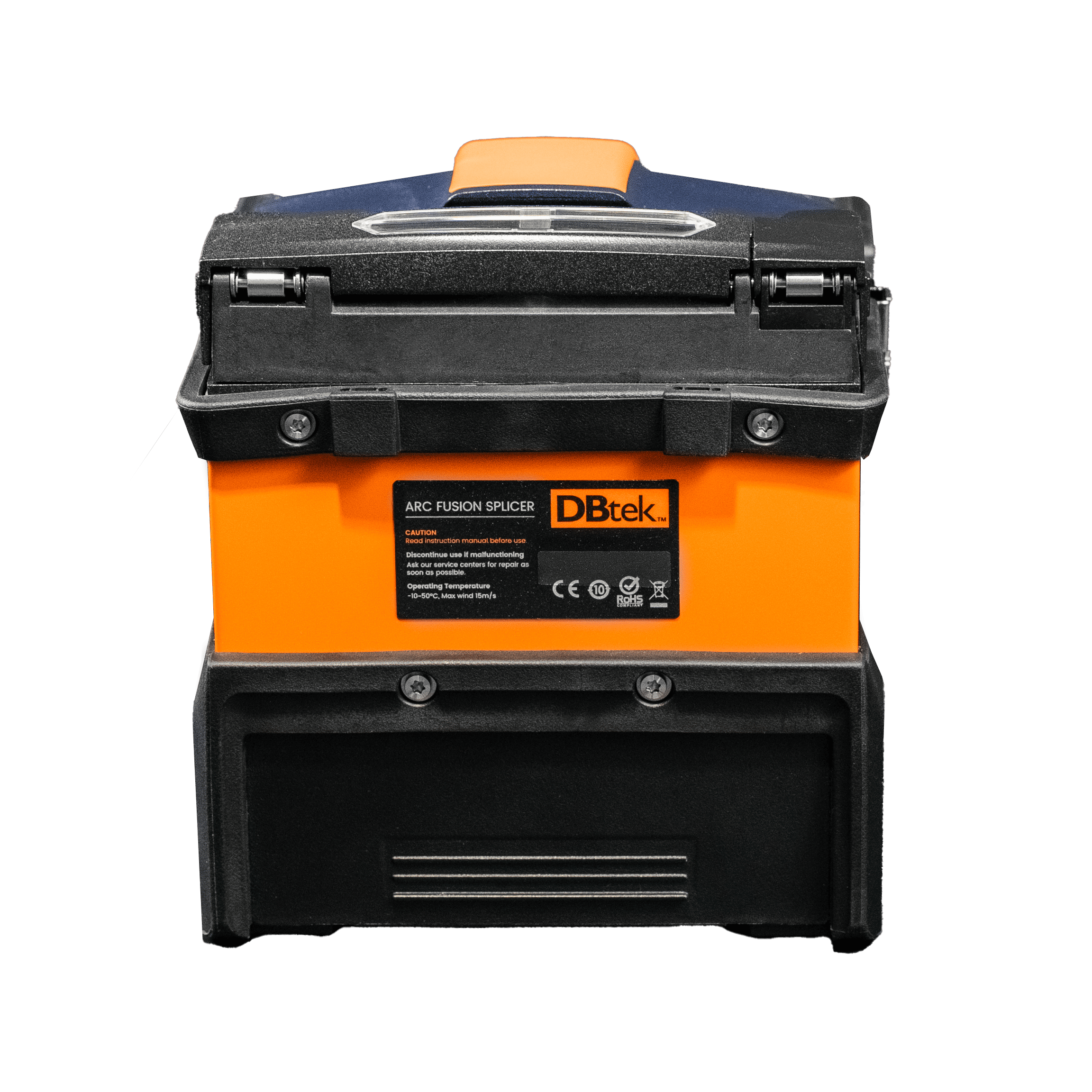

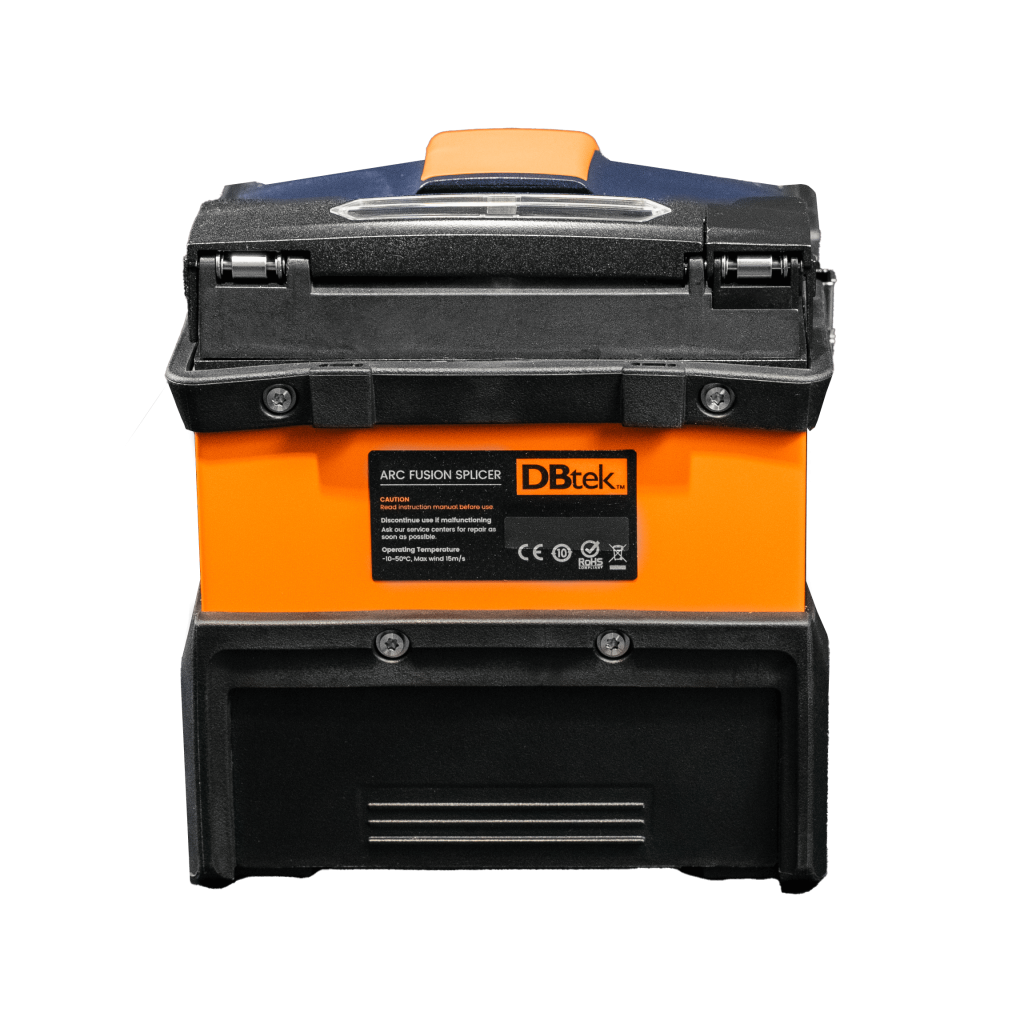

Introducing the GT40, an advanced active V-groove clad alignment fusion splicer that sets a new industry benchmark.

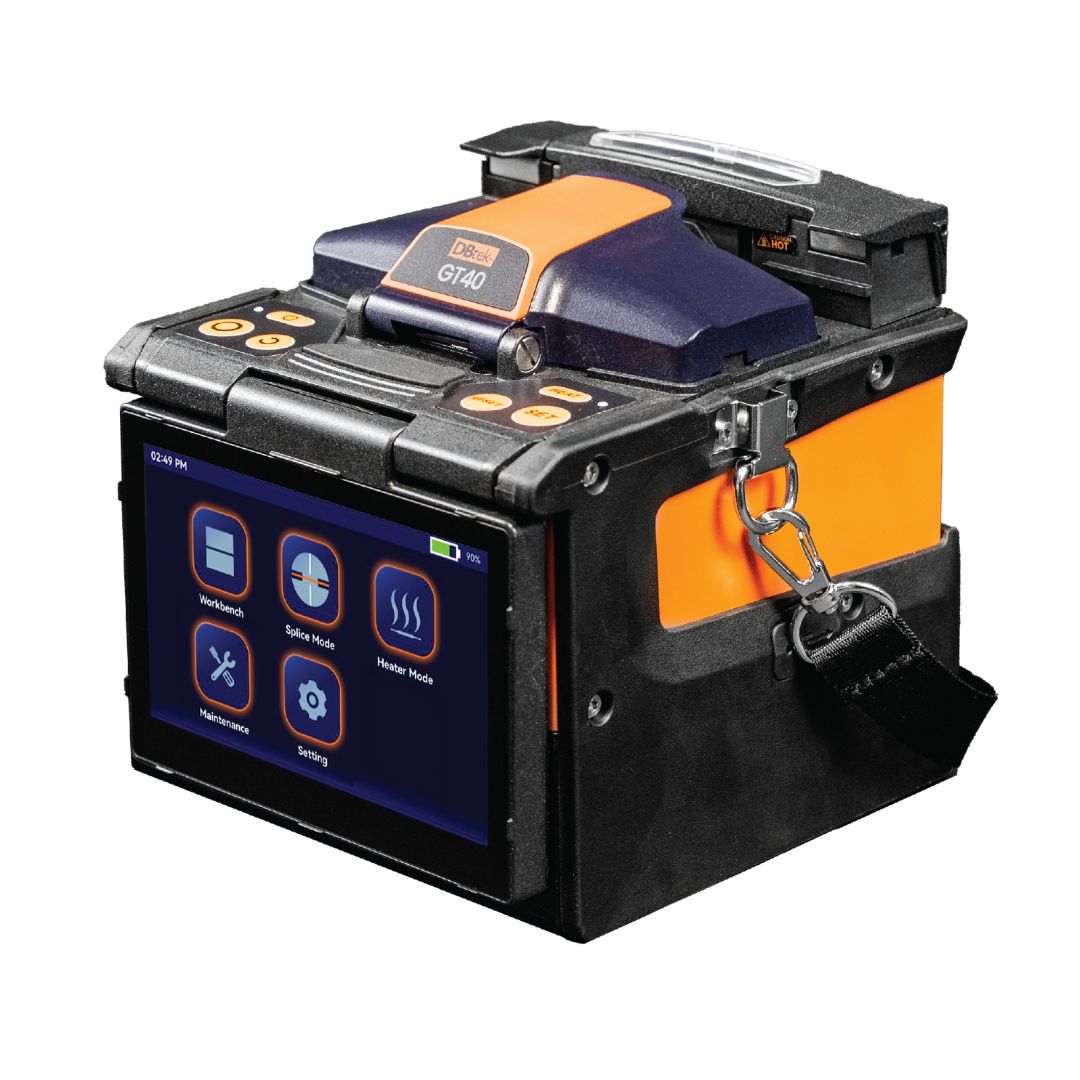

GT40: Precision Meets Efficiency

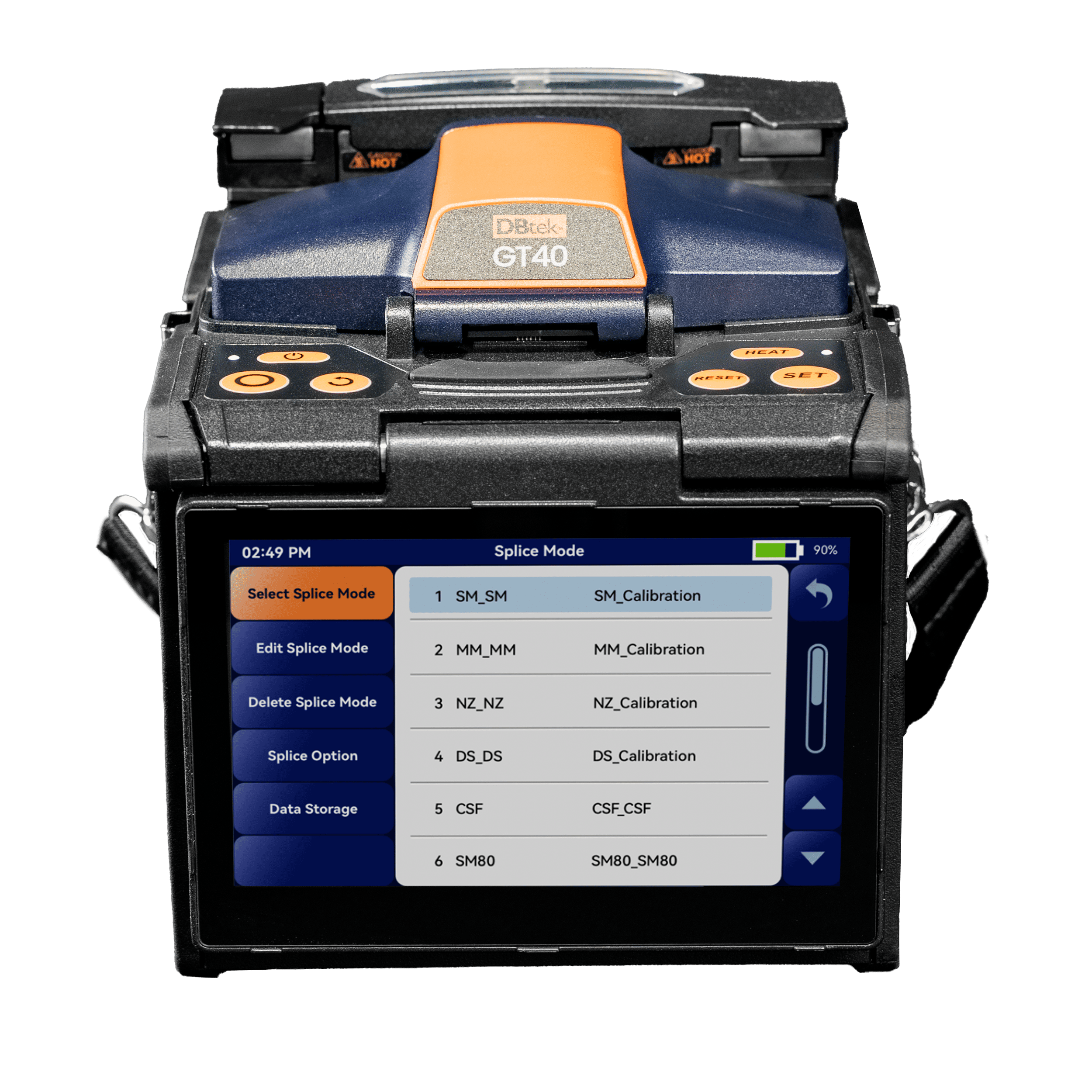

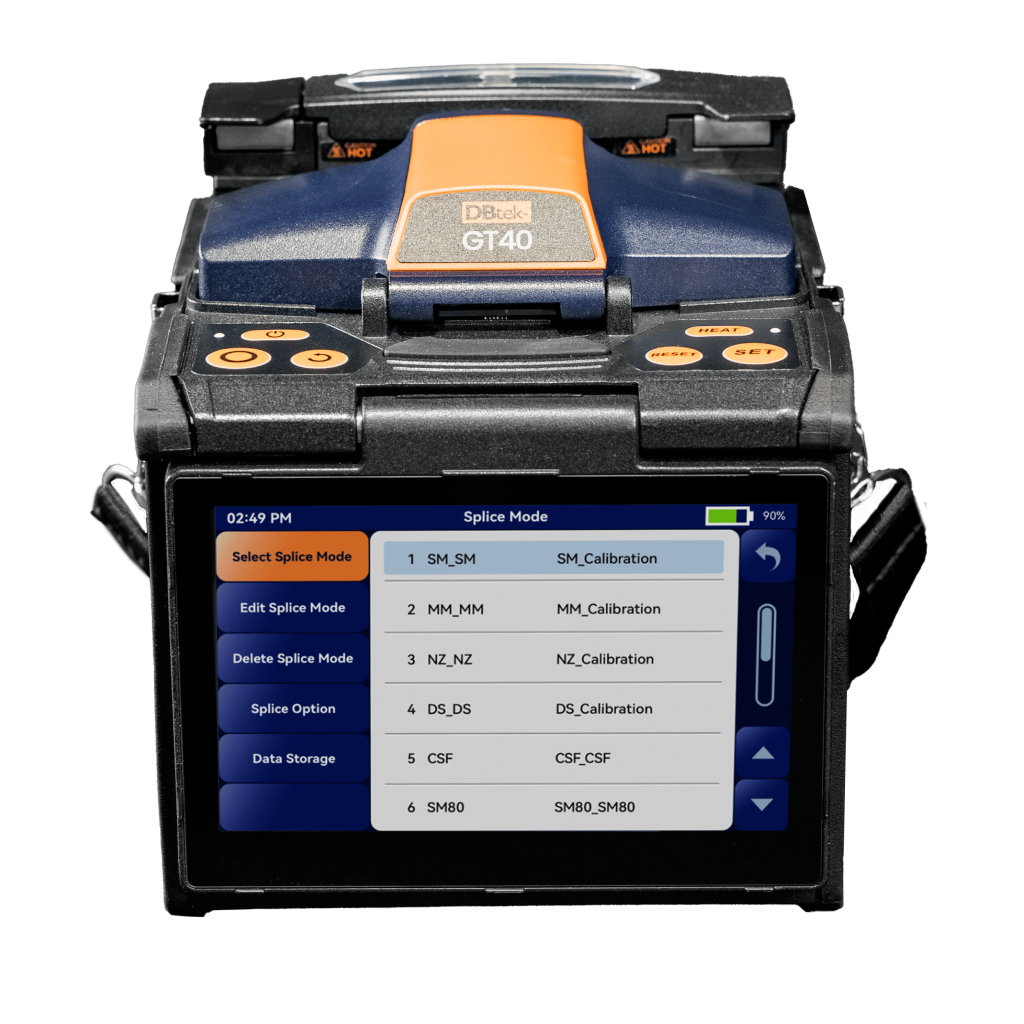

The GT40 is a next-gen active V-groove clad alignment fusion splicer, built for speed and accuracy. With a 5-inch touch screen and intuitive interface, it delivers 5-second splicing and 13-second heating, making it effortless for users of all skill levels.
A detachable SOC holder and 9000mAh battery power 450 splicing cycles per charge, perfect for fieldwork. Plus, the high-precision fiber cleaver ensures seamless, reliable splicing.
With 128 splice modes, 10,000 record storage, and a 3-year warranty, the GT40 is your go-to fiber splicing solution.
| Splicing Operation: Active V-groove Clad Alignment |
| Splicing Time: 5 Seconds |
| Heating Time: 13 Seconds |
| Battery Capacity: 450 Cycles |
| Applicable Fibers: SM(ITU-T G.652&T G.657)/MM(ITU-T G.651)/DS(ITU- T G.653)/NZDS (ITU-T G.655) |
| Coating Diameter: 100μm-3mm |
| Cladding Diameter: 80-150μm |
| Cleaved Length: 5-16mm |
| Average Loss: SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
| Return Loss: >>60dB |
| Splice Programs: Max 128 modes |
| Electrode Life span: 6000 arcs discharges |
| Heating Programs: Max 32 modes |
| Protection Sleeve: 20mm-60mm |
| Monitor: 5” Color LCD display, Full touch screen |
| Magnification: x440 (zoom mode) |
| Operating Environment : Altitude: 0 ~ 5000m Humidity: 0 ~ 95%, non-dew Temperature: -10 ~ 50 ºC Wind: up to 15m/sec |
| Storage Condition : Humidity: 0 ~ 95%, non-dew Temperature: - 40 ~ 80 ºC |
| Fusion Splicer GT60 Core Alignment |
| Fiber Cleaver |
| Carry Case |
| SOC holder |
| SOC Heater Cover |
| AC Adapter |
| Cooling Tray |
| Electrode (1 pair) |
| Battery Pack |
| Power Cable |
| USB Cable |
| Shoulder Strap |
